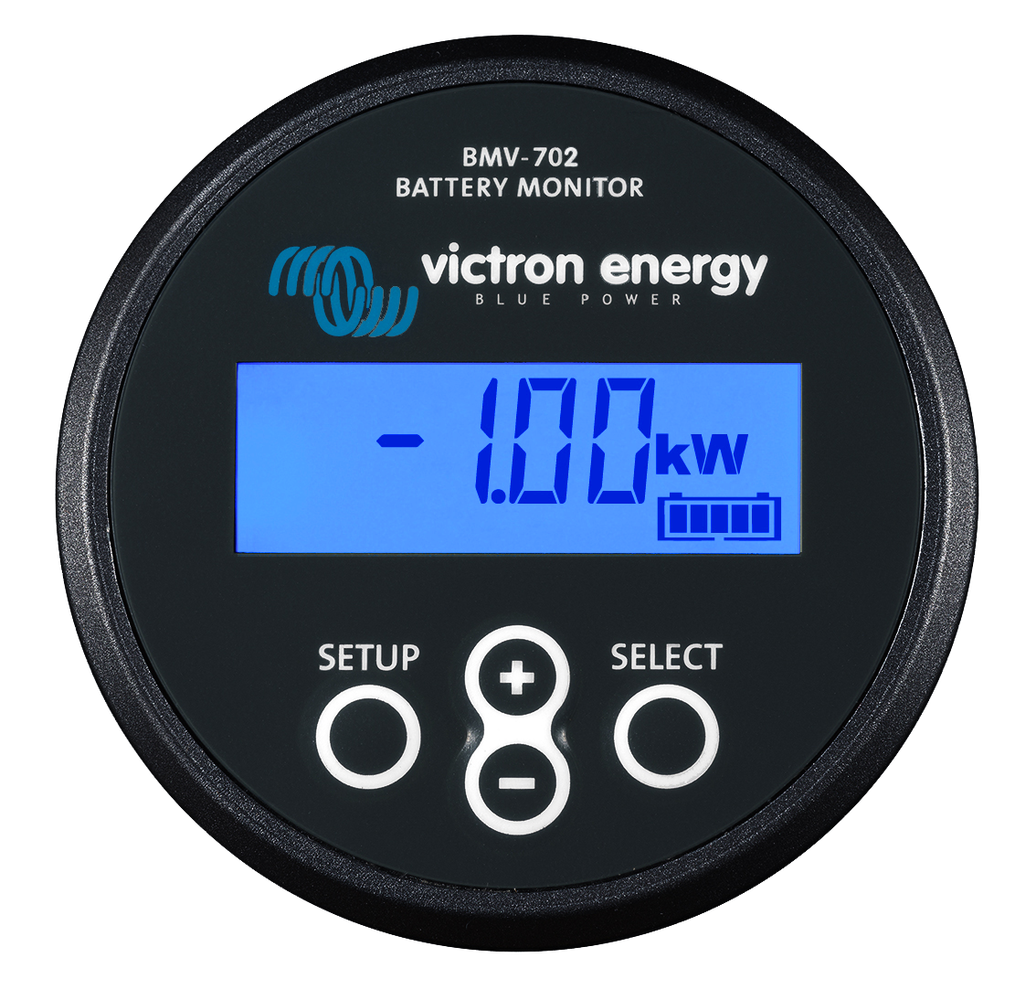

Battery Monitor BMV-702 BLACK Retail

Differences compared to BMV712 Battery Monitor - No programmable visual and audible alarm. - No programmable relay.

Features

• Basic options: voltage, current, ampere-hours consumed, state of charge, time to go, and power consumption in Watts.
• The BMV-702 features an additional input which can be programmed to measure the voltage (of a second battery), battery temperature or midpoint voltage
• Bluetooth Smart - wireless solution to monitor voltage and current
• Included: RJ12 cable (10m) and battery cable with fuse (2m);
• Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.
• Midpoint voltage monitoring (BMV-702 only) - to monitor any battery bank.
• BMV-702 additional features - Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.
• Quick connect PCB can be mounted to smart shunts
• Cables included - 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ Connection
• 500A / 50mV shunt included
• Compatible with Bluetooth smart dongle

Specification

• Supply Voltage - 6.5 - 95 VDC
• Current Draw - < 4mA
• Battery Capacity - 1 - 9999 Ah
• Complete with VE.Direct communication port
• Protection category – IP55. (not intended for outdoor use)
